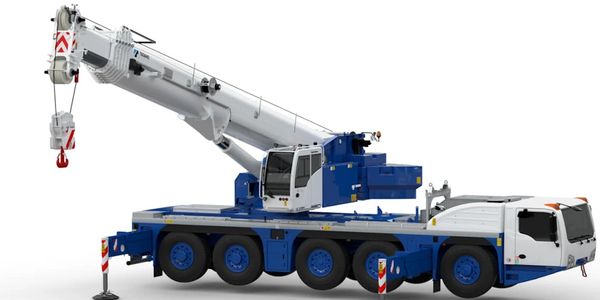

TADANO AC 5.160-1
Squeeze into any job site with this agile, cost-efficient crane that offers dynamic launch control, 5-axle steering system, and impressive main boom reach.
Product SPECs
ac-5.160-1_datasheet_imperial_en (pdf)
DownloadTADANO AC 5.160-1
Max Crane Capacity
Max Crane Capacity
Max Crane Capacity
180 US Ton
Boom Extension
Max Crane Capacity
Max Crane Capacity
5.3 FT / 37.4 FT - 108.2 FT
Main Boom Length
Max Crane Capacity
Max Counterweight
40.6 FT - 223.0 FT
Max Counterweight
Max Counterweight
Max Counterweight
104,400 LBS
Max Tip Height
Max Counterweight
Max Tip Height
320.2 FT
Engine
Max Counterweight
Max Tip Height
Mercedes Benz
PRODUCT DESCRIPTION

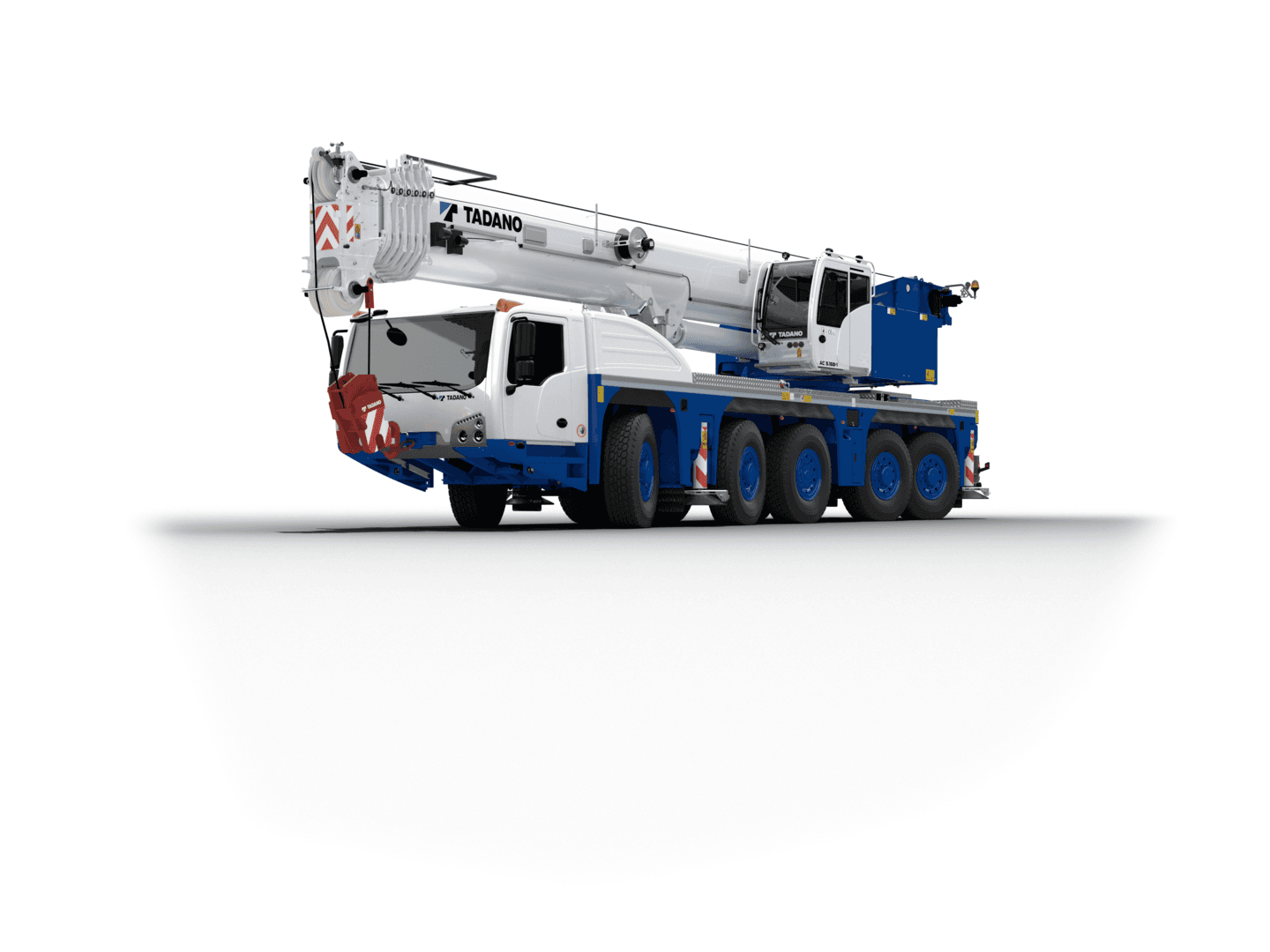

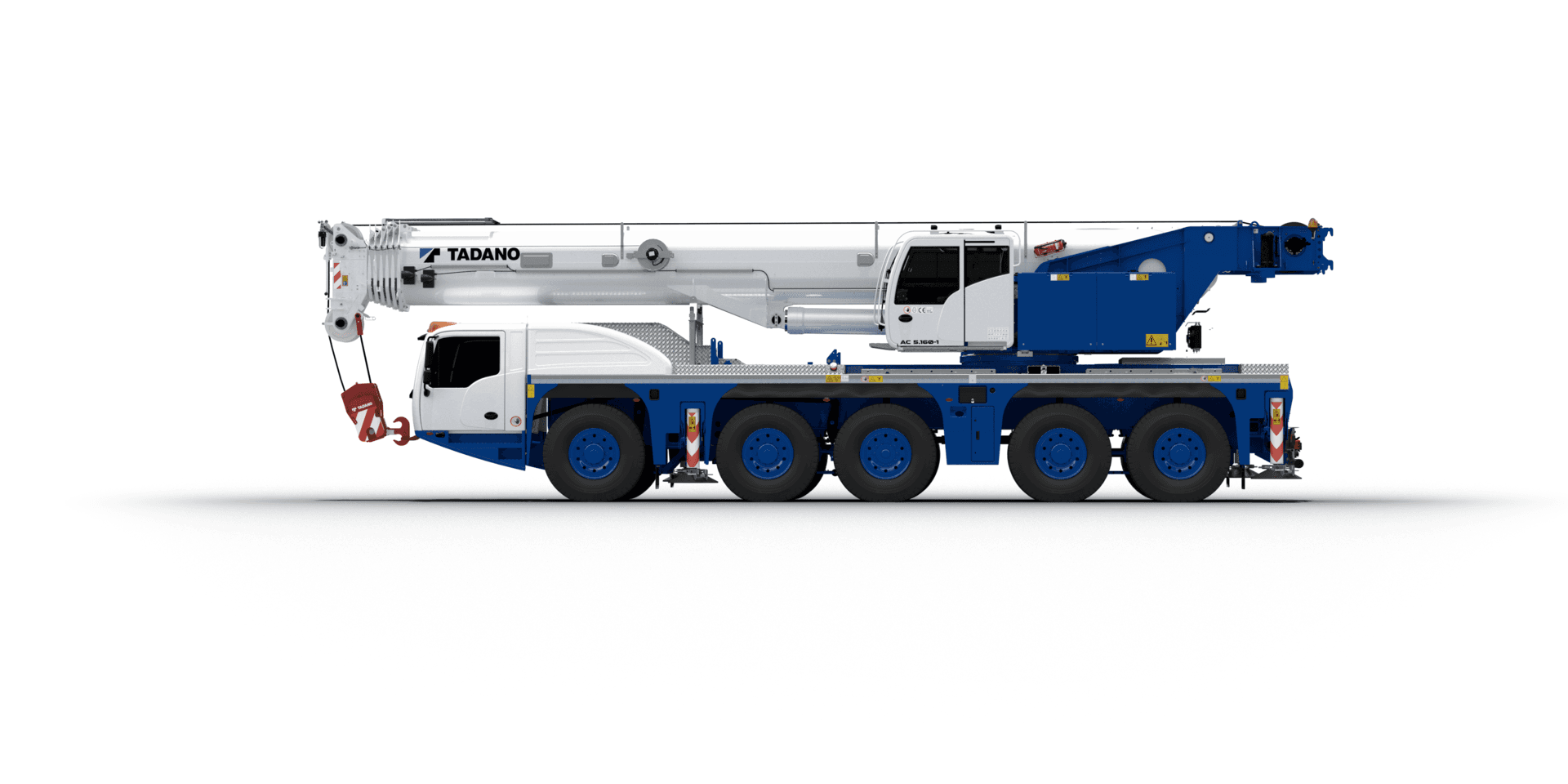

The agile AC 5.160-1 can squeeze into nearly any situation, with a width of only 2.75m / 9 ft and total length of 14.51m / 47.6 ft. Its 5-axle steering system, independent rear axle steering, and dynamic launch control enable it to navigate areas that would bog down other cranes. While compact, it offers impressive reach: the AC 5.160-1’s 68m / 223.1 ft main boom is the longest in its class. The crane’s single engine concept, start-stop function and intelligent motor management system reduces operational cost and maintenance. This compact powerhouse stays under the 12t / 13.2 USt axle load limit, yet can still carry 650kg / 1,433 lbs. of payload.
