Descriptions

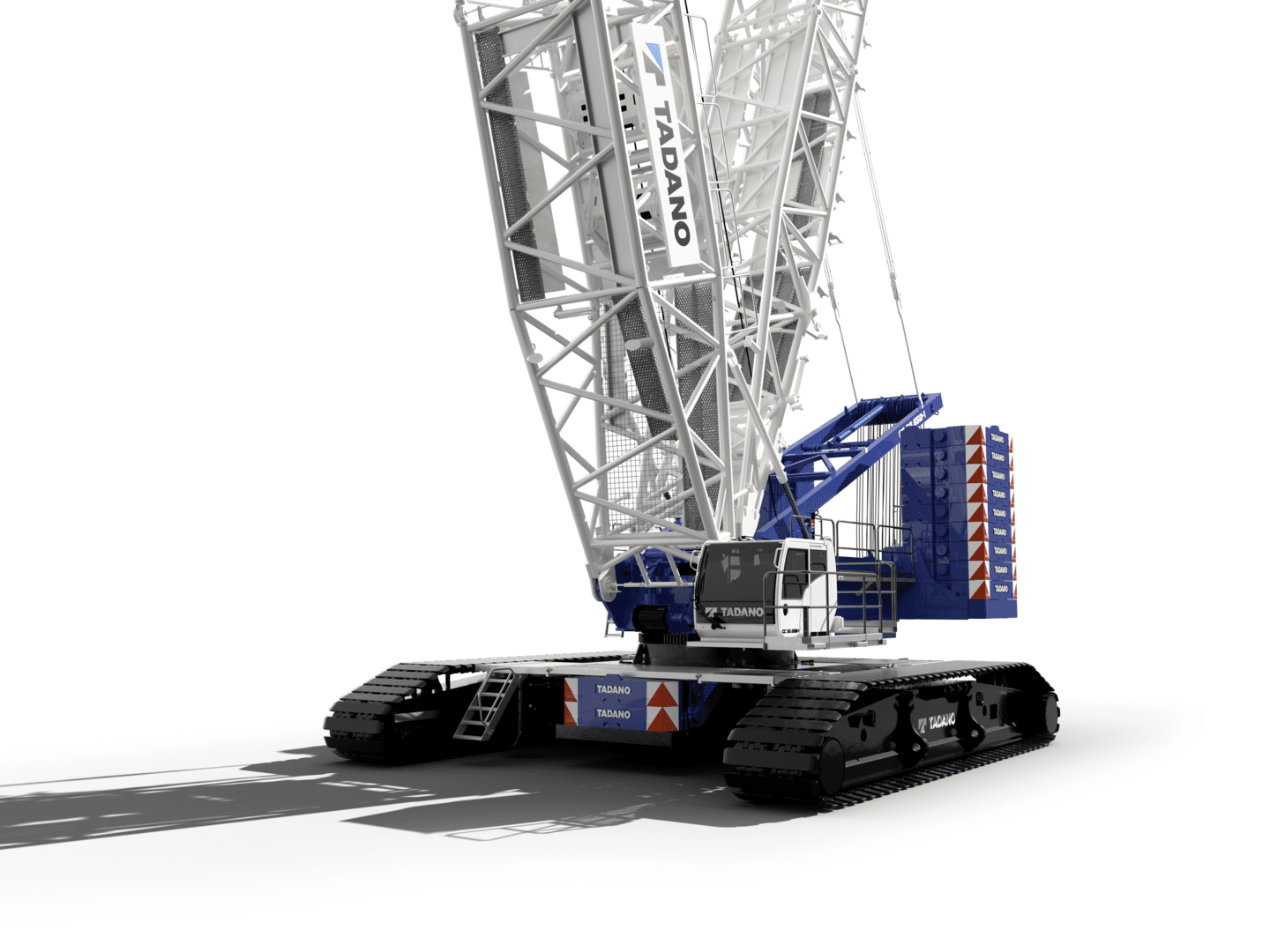

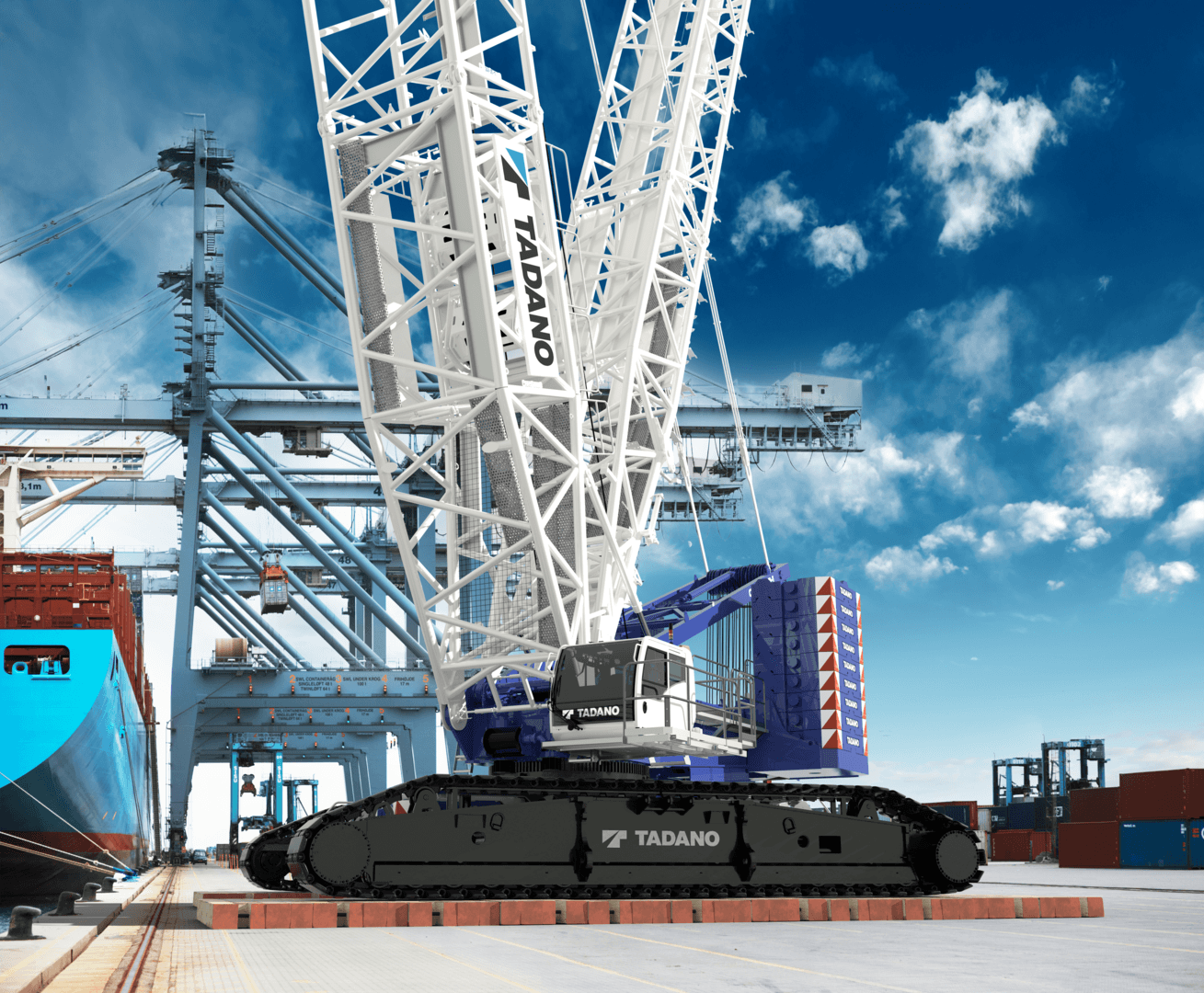

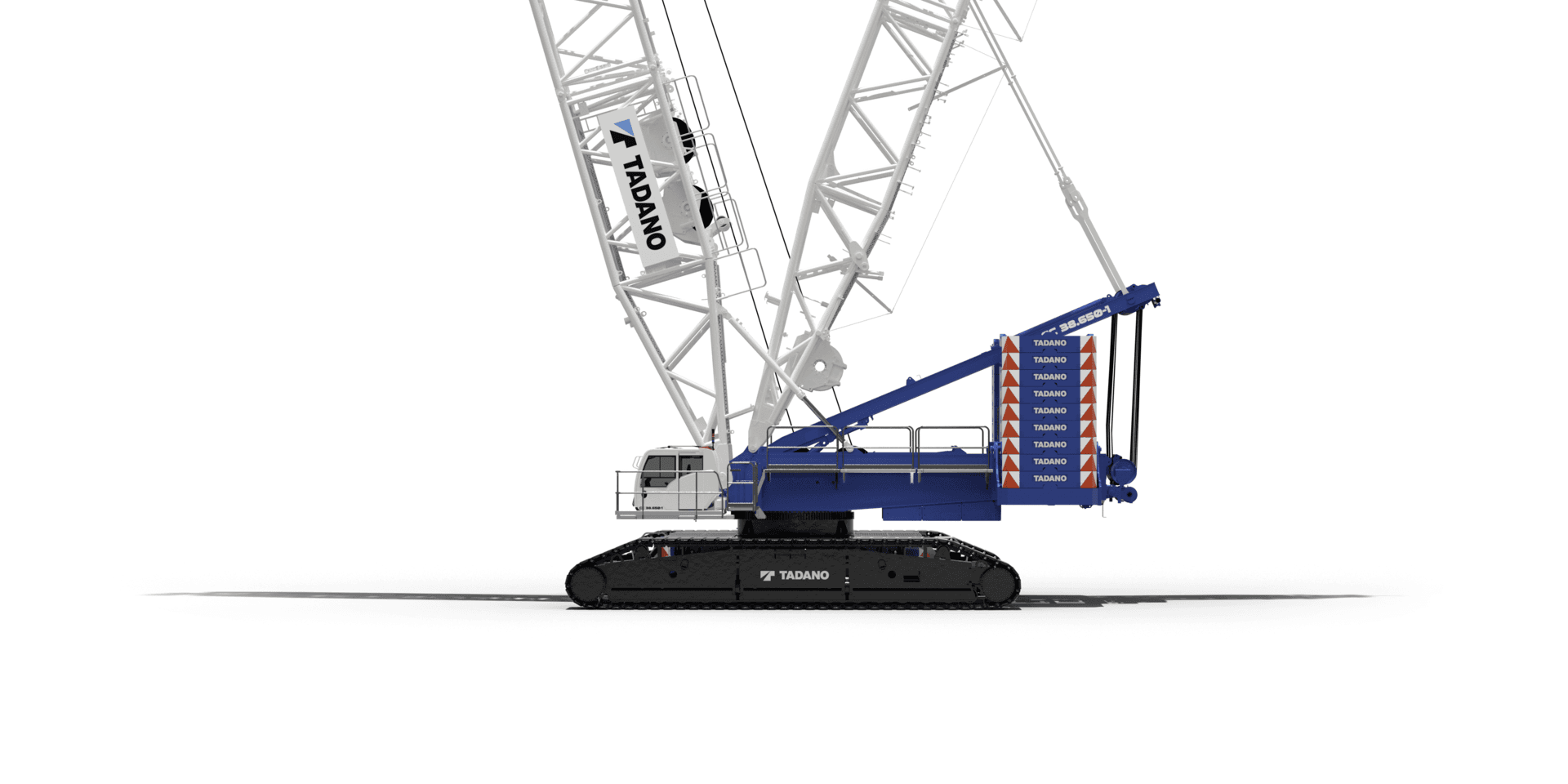

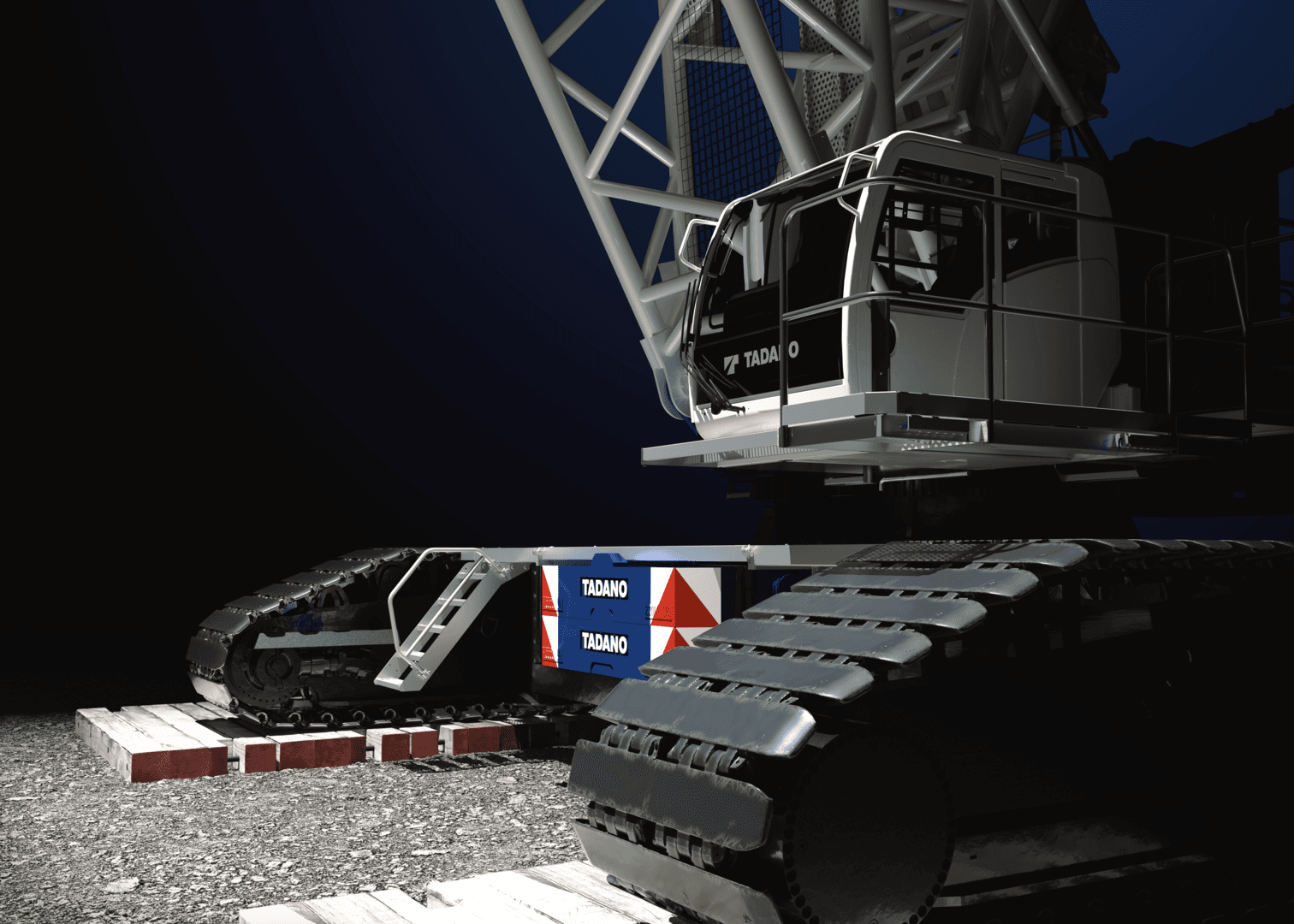

Power and reach for tall lifting jobs already without a Superlift system, increased reach and performance with Boom Booster. Product Specs Capacity: 715 USt Max. Load Moment: 66196 kips ft Main Boom Length: 78.7 ft - 561.0 ft Max. Tip Height: 633.0 ft Cost-Effective Power for Tall Infrastructure Lifting Projects The Tadano CC 38.650-1 combines strength, economy, and safety for many lifting applications. Its load capacity of 715 tons / 650t at a radius of 39.4 ft / 12m and maximum load moment of 66,196 kips/ft provides strength to erect wind turbines with hub heights up to 389.9 ft / 117m without the need for a Superlift system. The divisible Split Tray superlift frame allows easy counterweight uncoupling, while the optional Flex Frame can further increase radius. The optional Boom Booster extends system length to 600 ft / 183m, and the ESTA award-winning fall protection design keeps people on the safe side during assembly and disassembly. CC 38.650-1 Boom Booster available.

Contact for Pricing
