Contact for availability
Max Cap
2
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
16.1 ft - 25.1 ft
Jib
25.3 ft - 33.6 ft
Total Hrs
New
Request Pricing
PM 11021 SP | PM 11022 SP | PM 11022 SP + J312 | PM 11022 SP + J313 | PM 11023 SP | PM 11023 SP + J312 | PM 11023 SP + J313 | PM 11024 SP | PM 11025 SP | |
|---|---|---|---|---|---|---|---|---|---|
| Spec Sheet | |||||||||
| Spec Sheet | - | - | - | - | - | - | - | - | - |
| Max. Pressure | - | - | - | - | - | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - | - | - | - | - | - |
| Max. Lifting Moment | 74260 ft Ibs | 72420 ft Ibs | 72420 ft Ibs | 72420 ft Ibs | 71010 ft Ibs | 71010 ft Ibs | 71010 ft Ibs | 69430 ft Ibs | 68550 ft Ibs |
| Hydraulic Horizontal Outreach | 18′ 8″ | 25′ 3″ | 42′ | 46′ 5″ | 32′ 2″ | 48′ 9″ | 53′ 2″ | 39′ 2″ | 46′ 3″ |
| Hydraulic Vertical Outreach | 29′ | 35′ 5″ | 48′ 5″ | 56′ 3″ | 42′ 2″ | 58′ 1″ | 63′ | 48′ 11″ | 55′ 9″ |
| Recommended oil flow | - | - | - | - | - | - | - | - | - |
| Slewing torque | - | - | - | - | - | - | - | - | - |
| Stabilizer Spread available | - | - | - | - | - | - | - | - | - |
| Slewing angle | 400° | 400° | 400° | 400° | 400° | 400° | 400° | 400° | 400° |
| Stabilizer control Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless | Radio Wireless |
| Width | 2′ 5″ | 2′ 5″ | 3′ | 3′ | 2′ 5″ | 3′ | 3′ | 2′ 7″ | 2′ 7″ |
| Height | 6′ 11″ | 6′ 11″ | 7′ 10″ | 7′ 10″ | 6′ 11″ | 7′ 10″ | 7′ 10″ | 6′ 11″ | 7′ 1″ |
| Length | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 5″ |
Standard
Standard
Standard
Optional
Optional
Optional
Optional
Optional
Optional
Standard
Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions

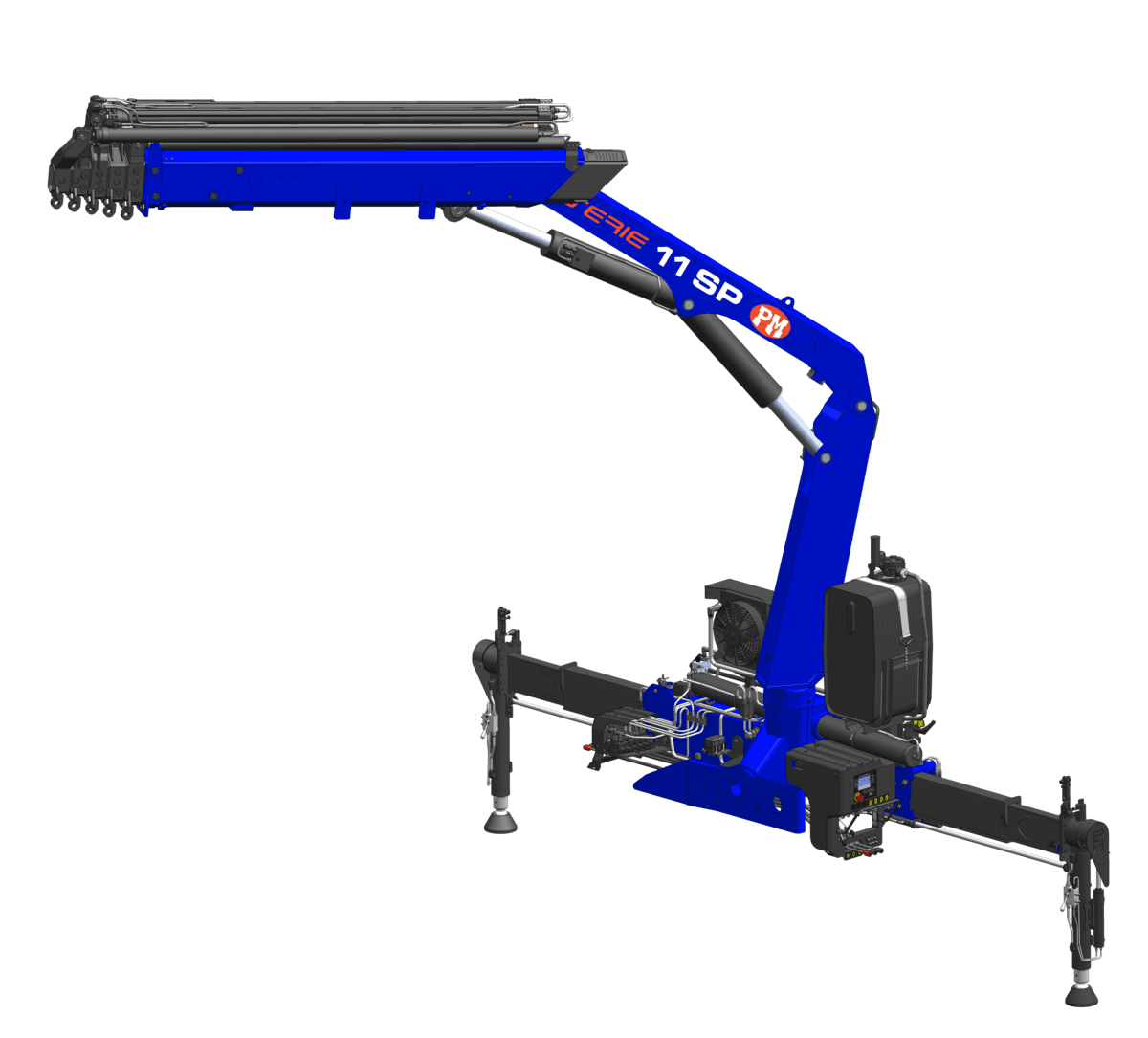

The PM 11 SP combines advanced control, lightweight design, and superior outreach—delivering precision and reliability in everyday lifting. Smart power, precise control.
Contact for Pricing
