Media Gallery
Contact for availability
Max Cap
2
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
16.1 ft - 25.1 ft
Jib
25.3 ft - 33.6 ft
Total Hrs
New
Request Pricing

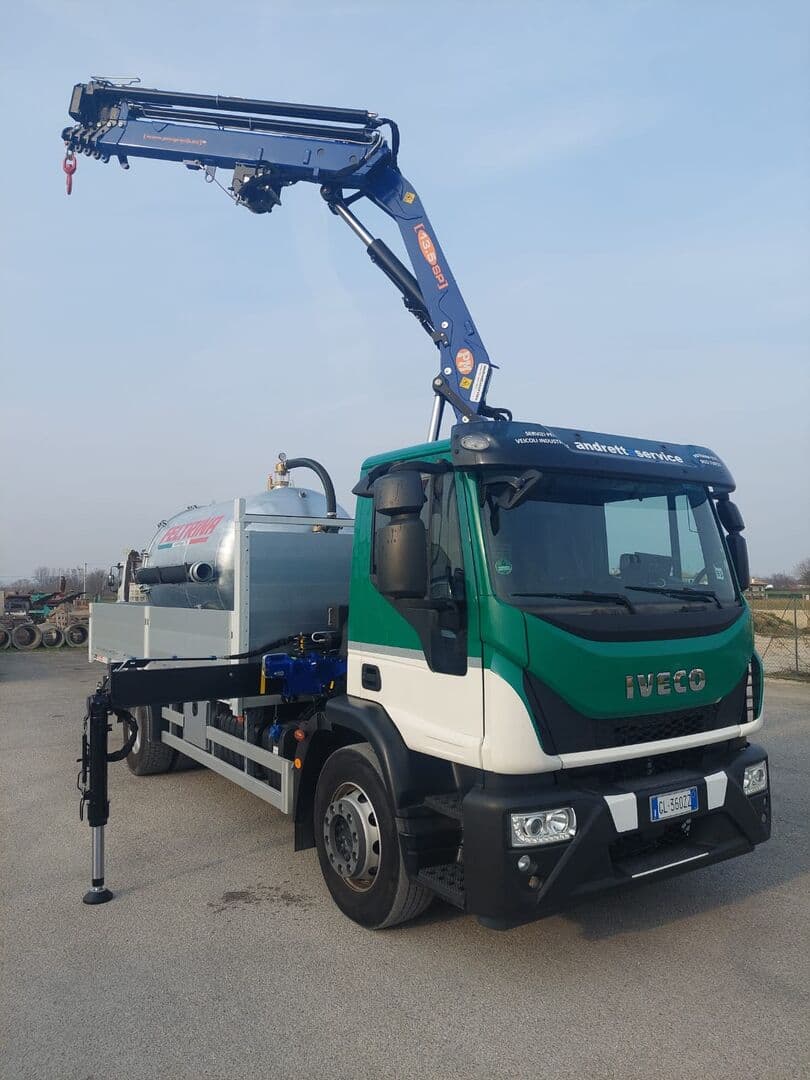

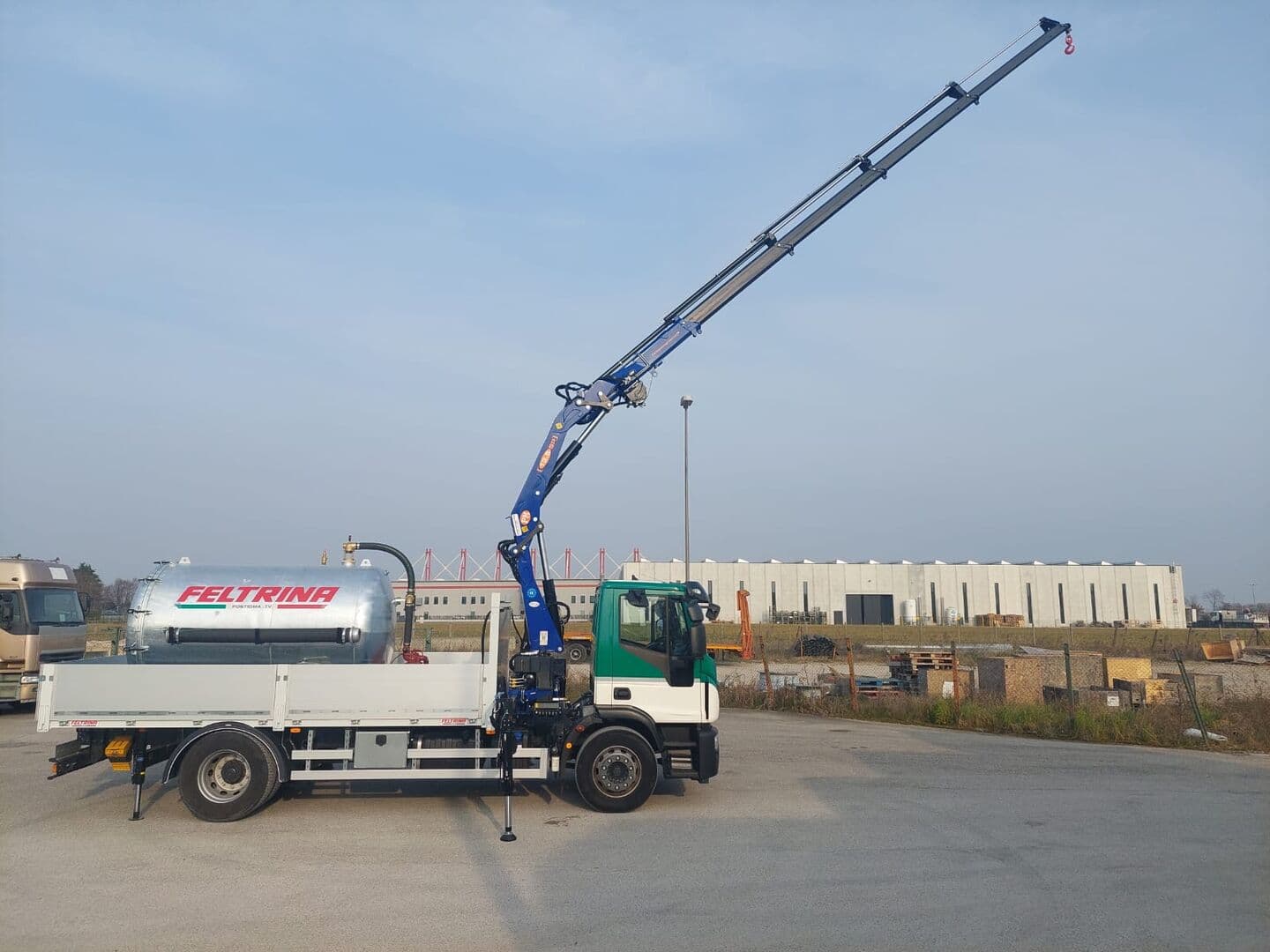

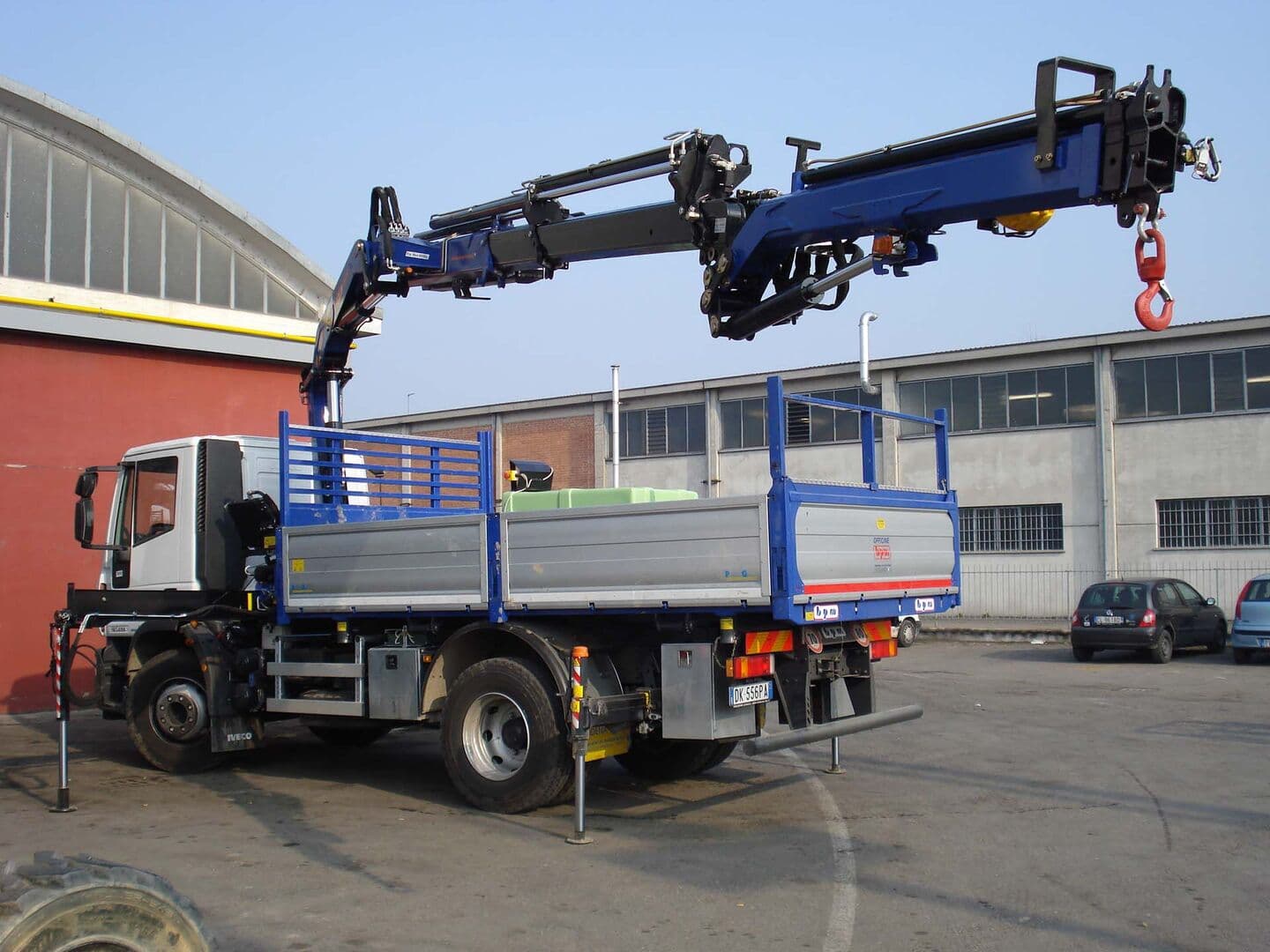

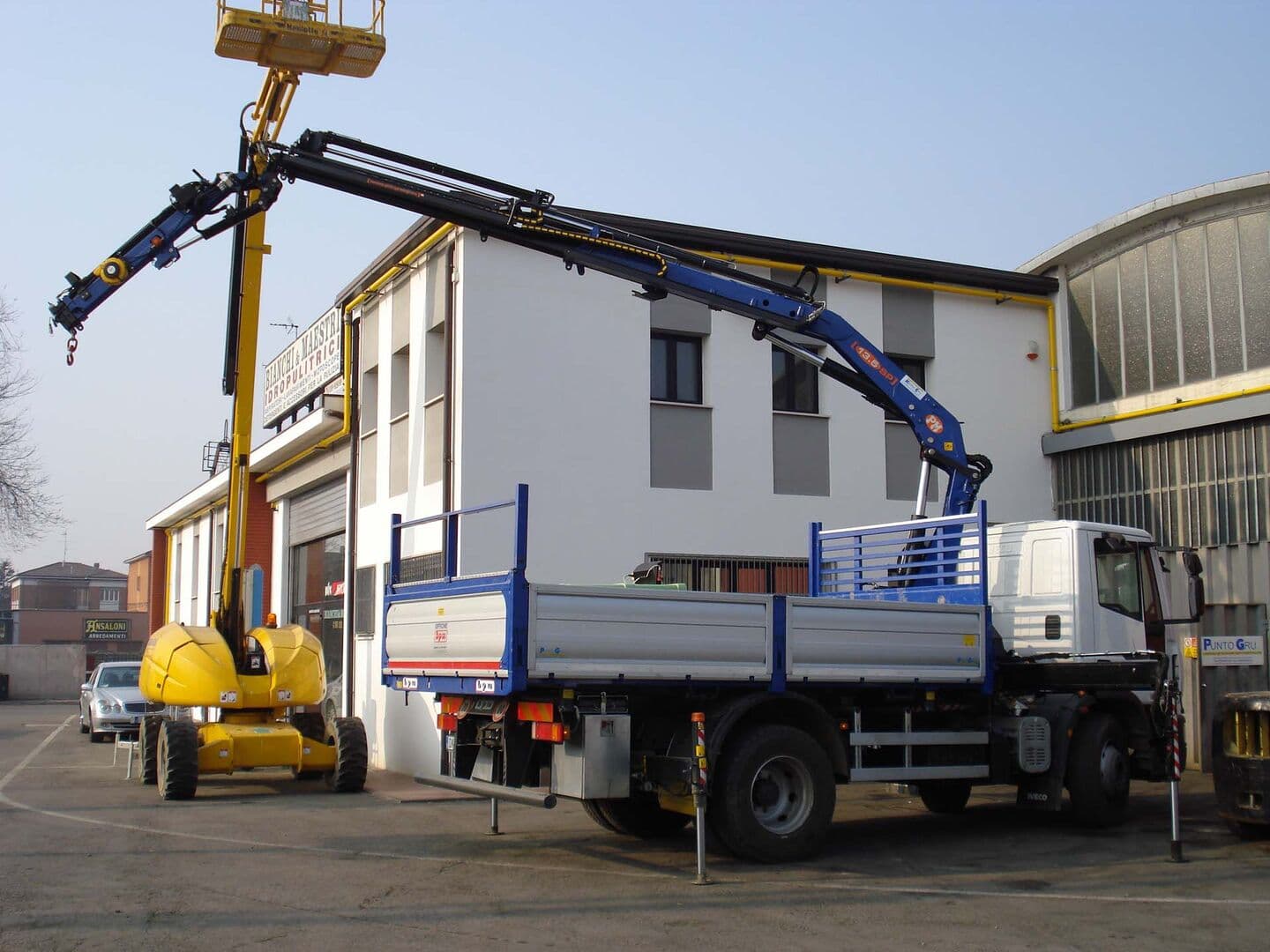

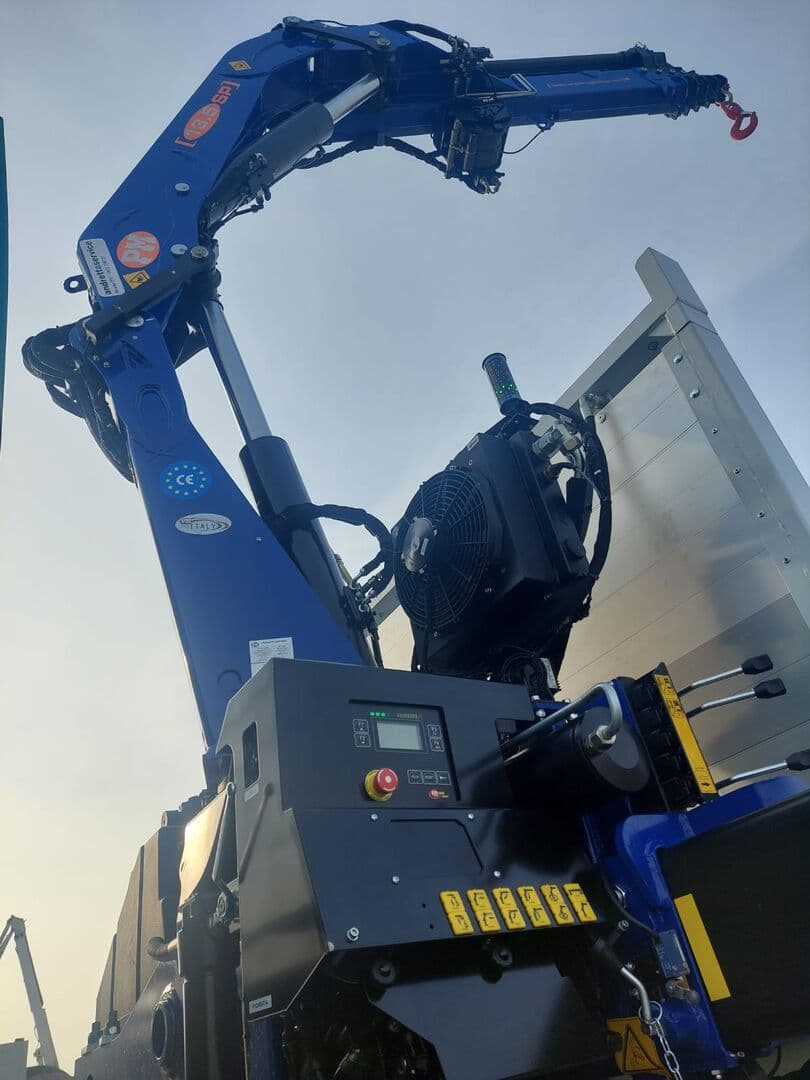

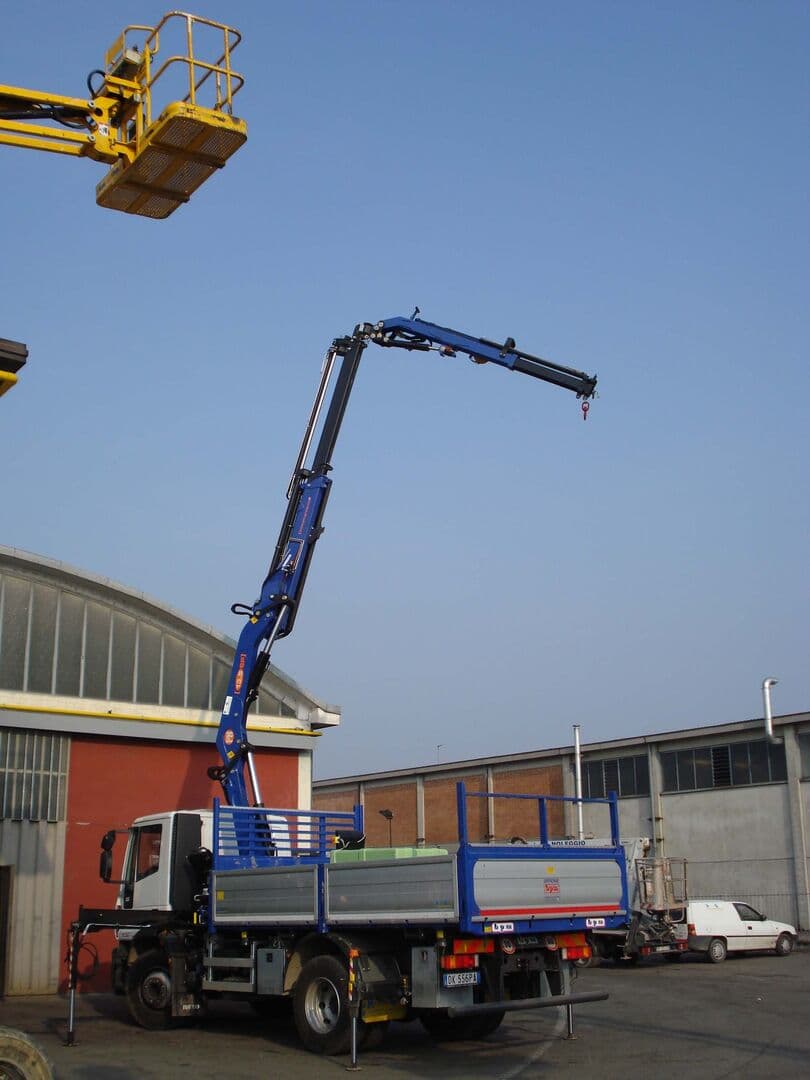

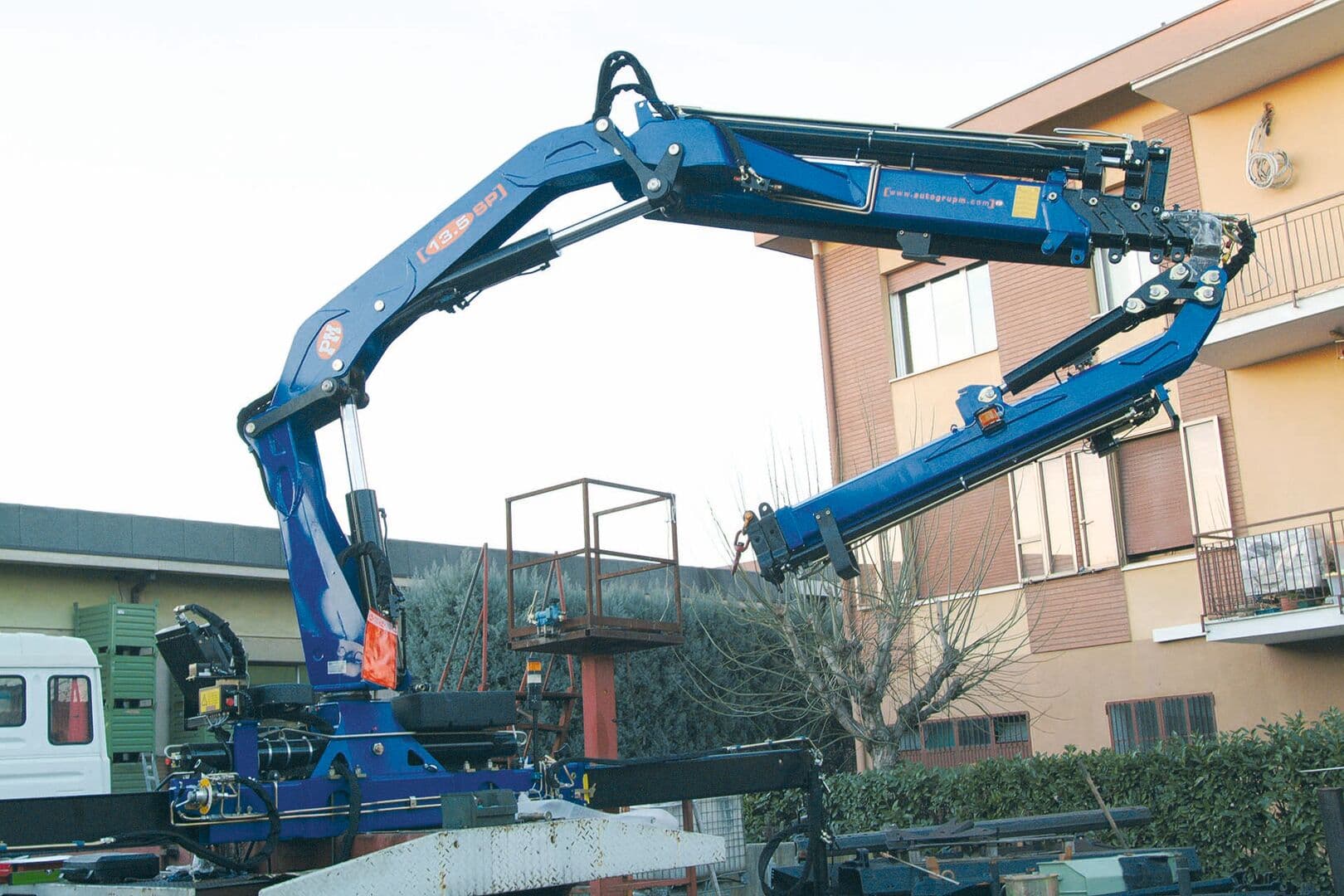

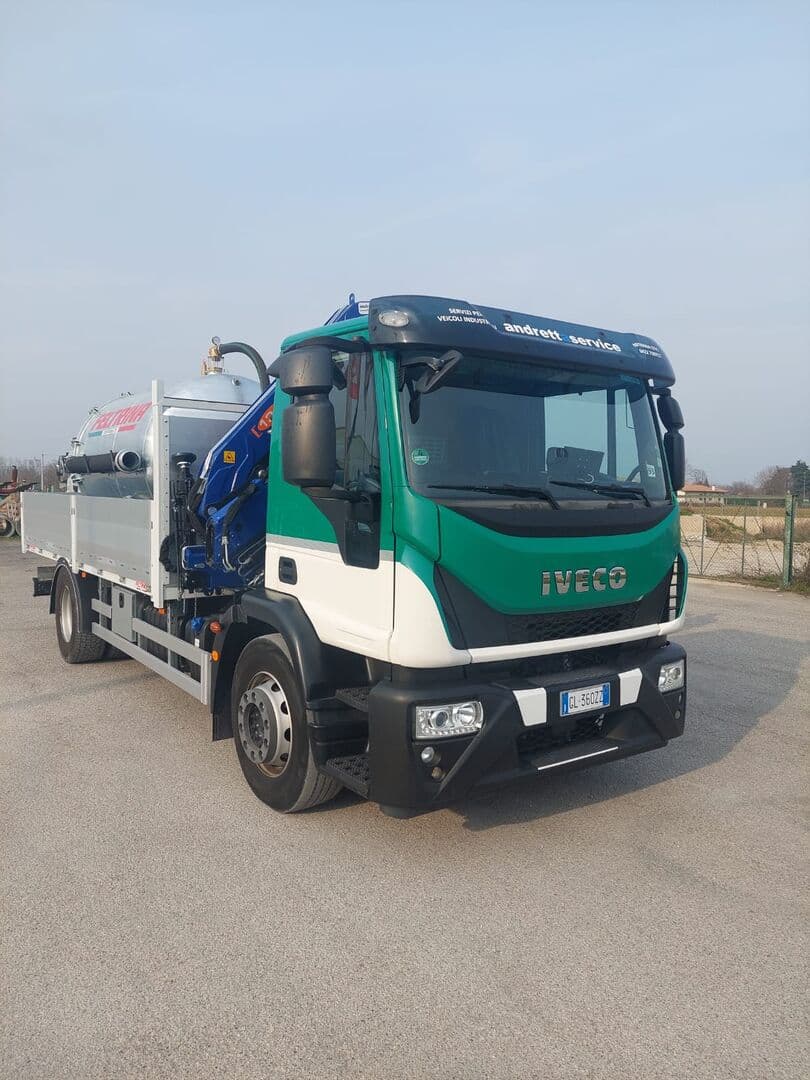

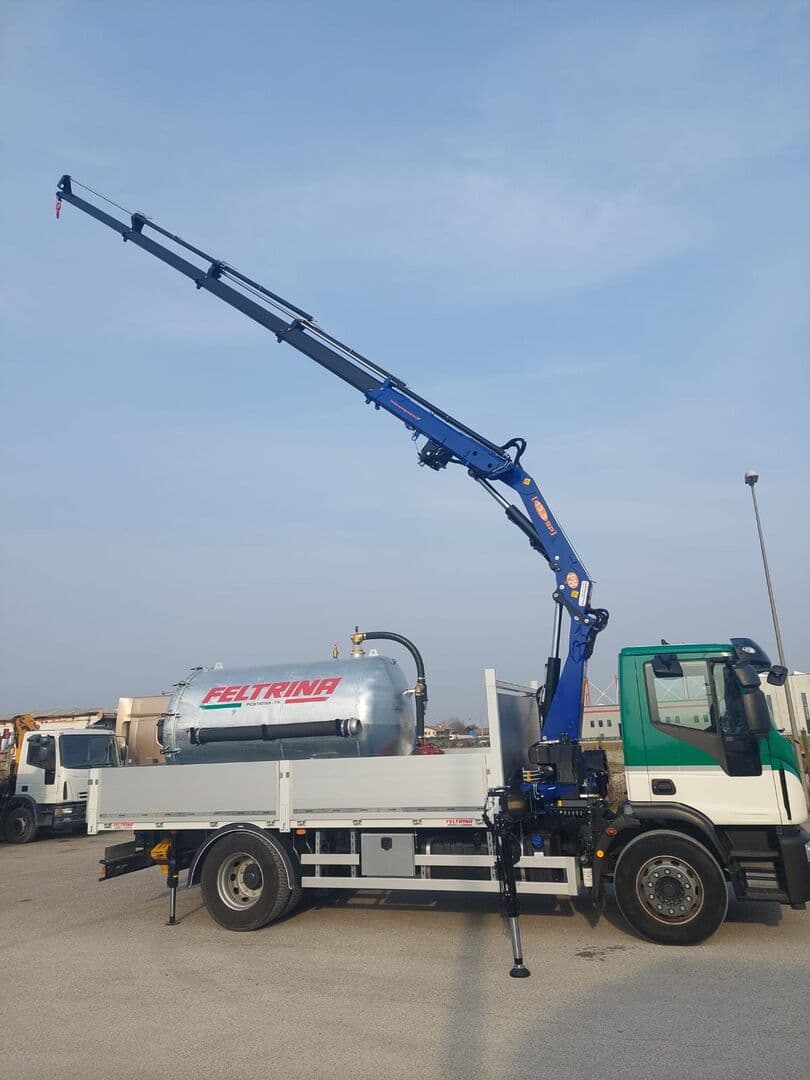

Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions
High-performing and versatile, the PM 13.5 SP series combines advanced electronics with precision hydraulics to deliver outstanding lifting capacity and smooth, reliable operation. Compact power, advanced control.
Contact for Pricing
PM 13521 SP | PM 13522 SP | PM 13523 SP | PM 13523 SP + J252 | PM 13524 SP | PM 13524 SP + J252 | PM 13525 SP | |
|---|---|---|---|---|---|---|---|
| Spec Sheet | |||||||
| Spec Sheet | - | - | - | - | - | - | - |
| Max. Pressure | - | - | - | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - | - | - | - |
| Max. Lifting Moment | 88860 ft Ibs | 86150 ft Ibs | 82110 ft Ibs | 82110 ft Ibs | 81950 ft Ibs | 81950 ft Ibs | 76280 ft Ibs |
| Hydraulic Horizontal Outreach | 19′ 8″ | 26′ 7″ | 33′ 11″ | 51′ 2″ | 41′ 4″ | 58′ 9″ | 49′ 1″ |
| Hydraulic Vertical Outreach | 30′ 2″ | 37′ 9″ | 44′ 9″ | 61′ 10″ | 52′ 4″ | 68′ 3″ | 59′ 11″ |
| Recommended oil flow | - | - | - | - | - | - | - |
| Slewing torque | - | - | - | - | - | - | - |
| Stabilizer Spread available | - | - | - | - | - | - | - |
| Slewing angle | 406° | 406° | 406° | 406° | 406° | 406° | 406° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Width | 2′ 6” | 2′ 6” | 2′ 6” | 3′ 2″ | 2′ 10” | 3′ 2″ | 2′ 10” |
| Height | 7′ | 7′ | 7′ | 8′ | 7′ | 8′ | 7′ |
| Length | 7′ 11 | 7′ 11 | 7′ 11 | 7′ 11 | 7′ 11 | 7′ 11 | 7′ 11 |
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Optional
Optional
Optional
Optional
Optional
Standard
