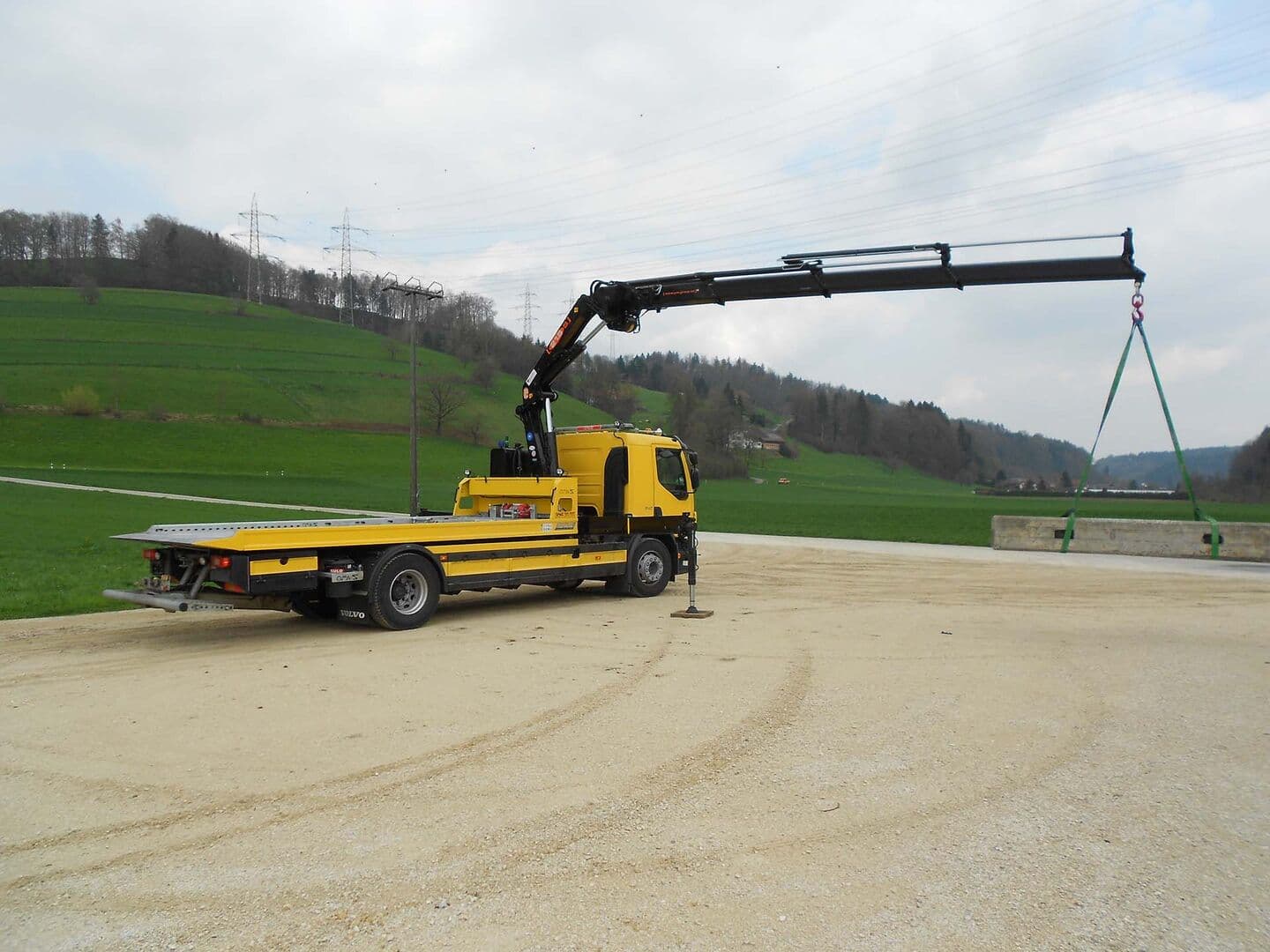

Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions

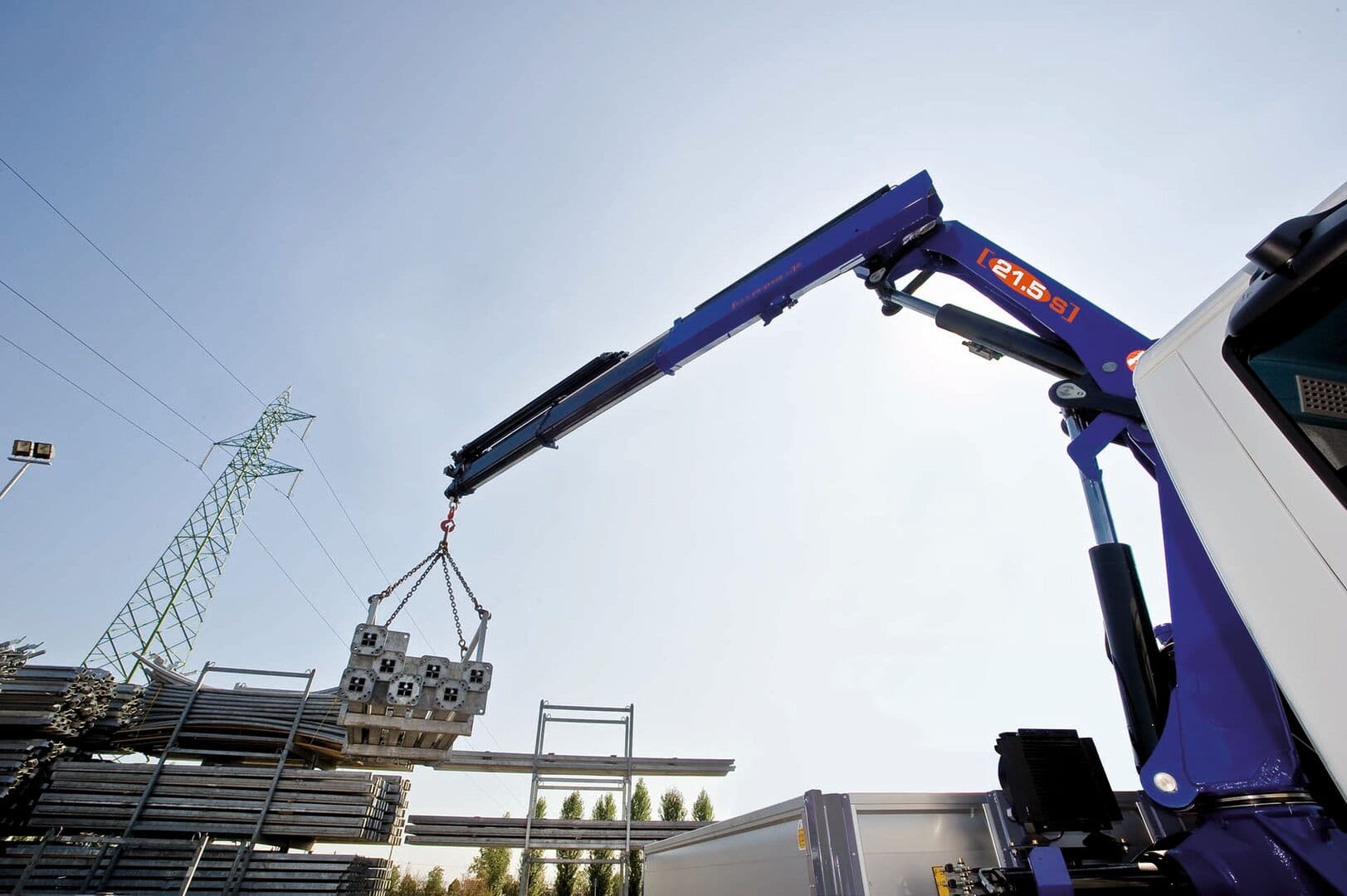

The PM 21.5 S combines power, precision, and flexibility with a light structure and wide outreach—built for demanding medium-capacity lifting. Flexible strength in every movement.
Contact for Pricing
PM 21522 S | PM 21523 S | PM 21524 S | PM 21525 S | PM 21526 S | PM 21527 S | |
|---|---|---|---|---|---|---|
| Spec Sheet | ||||||
| Spec Sheet | - | - | - | - | - | - |
| Max. Pressure | - | - | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - | - | - |
| Max. Lifting Moment | 146110 ft lbs | 139600 ft lbs | 135980 ft lbs | 131640 ft lbs | 130190 ft lbs | 125130 ft lbs |
| Hydraulic Horizontal Outreach | 25′ 5″ | 32′ 8″ | 40′ 2″ | 47′ 7″ | 55′ 1″ | 62′ 6″ |
| Hydraulic Vertical Outreach | 38′ 7″ | 45′ 7″ | 52′ 12″ | 60′ 6″ | 67′ 11″ | 75′ 4″ |
| Recommended oil flow | - | - | - | - | - | - |
| Slewing torque | - | - | - | - | - | - |
| Stabilizer Spread available | - | - | - | - | - | - |
| Slewing angle | 400° | 400° | 400° | 400° | 400° | 400° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual | Manual | Manual |
| Width | 3′ 3″ | 3′ 3″ | 3′ 3″ | 3′ 5″ | 3′ 6″ | 3′ 7″ |
| Height | 7′ 5″ | 7′ 5″ | 7′ 5″ | 7′ 7″ | 7′ 9″ | 7′ 11″ |
| Length | 8′ 1″ | 8′ 1″ | 8′ 1″ | 8′ 1″ | 8′ 1″ | 8′ 1″ |
