Media Gallery
Contact for availability
Max Cap
2
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
15.4 ft - 24.6 ft
Jib
24.6 ft - 33.1 ft
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
16.1 ft - 25.1 ft
Jib
25.3 ft - 33.6 ft
Total Hrs
New
Request Pricing
PM 57522 PX | PM 57522 PX C | PM 57523 PX | PM 57523 PX C | PM 57524 PX | PM 57524 PX C | PM 57525 PX | PM 57525 PX C | PM 57526 PX | PM 57526 PX C | |
|---|---|---|---|---|---|---|---|---|---|---|
| Spec Sheet | ||||||||||
| Spec Sheet | - | - | - | - | - | - | - | - | - | - |
| Max. Pressure | - | - | - | - | - | - | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - | - | - | - | - | - | - |
| Max. Lifting Moment | 363240 ft Ibs | 349460 ft Ibs | 352010 ft Ibs | 340600 ft Ibs | 346400 ft Ibs | 330320 ft Ibs | 338110 ft Ibs | 323320 ft Ibs | 334350 ft Ibs | 317240 ft Ibs |
| Hydraulic Horizontal Outreach | 26′ 1″ | 23′ | 31′ 6″ | 28′ 5″ | 38′ 7″ | 35′ 5″ | 45′ 11″ | 42′ 10″ | 53′ 8″ | 50′ 6″ |
| Hydraulic Vertical Outreach | 41′ 10″ | 36′ 11″ | 46′ 11″ | 42′ 2″ | 53′ 8″ | 49′ 3″ | 60′ 6″ | 56′ 5″ | 67′ 11″ | 64′ |
| Recommended oil flow | - | - | - | - | - | - | - | - | - | - |
| Slewing torque | - | - | - | - | - | - | - | - | - | - |
| Stabilizer Spread available | - | - | - | - | - | - | - | - | - | - |
| Slewing angle | 385° | 385° | 385° | 385° | 385° | 385° | 385° | 385° | 385° | 385° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Width | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 5″ | 4′ 8″ | 4′ 8″ |
| Height | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ | 8′ 3″ |
| Length | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ |
Standard
Standard
Standard
Optional
Optional
Standard

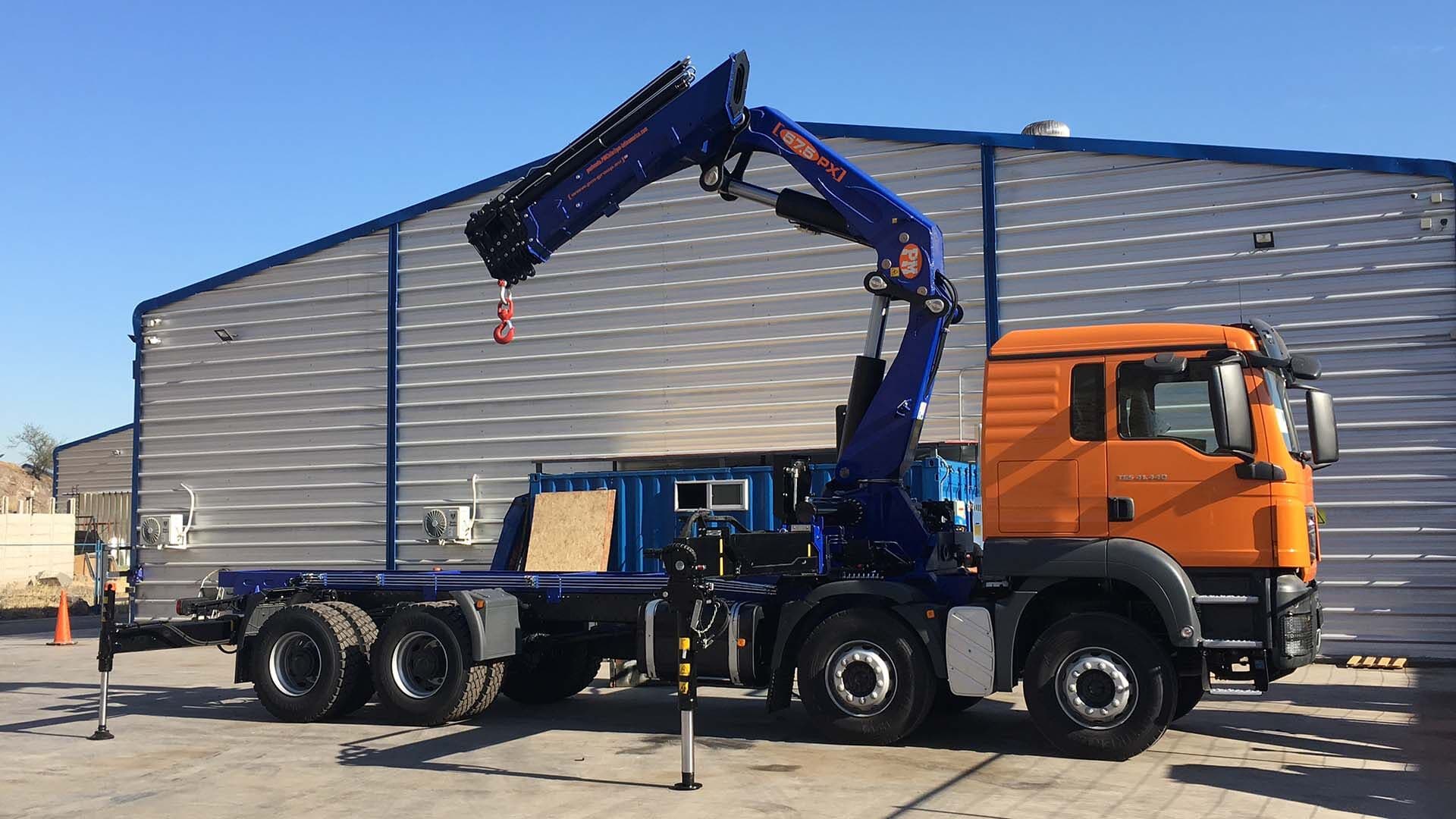

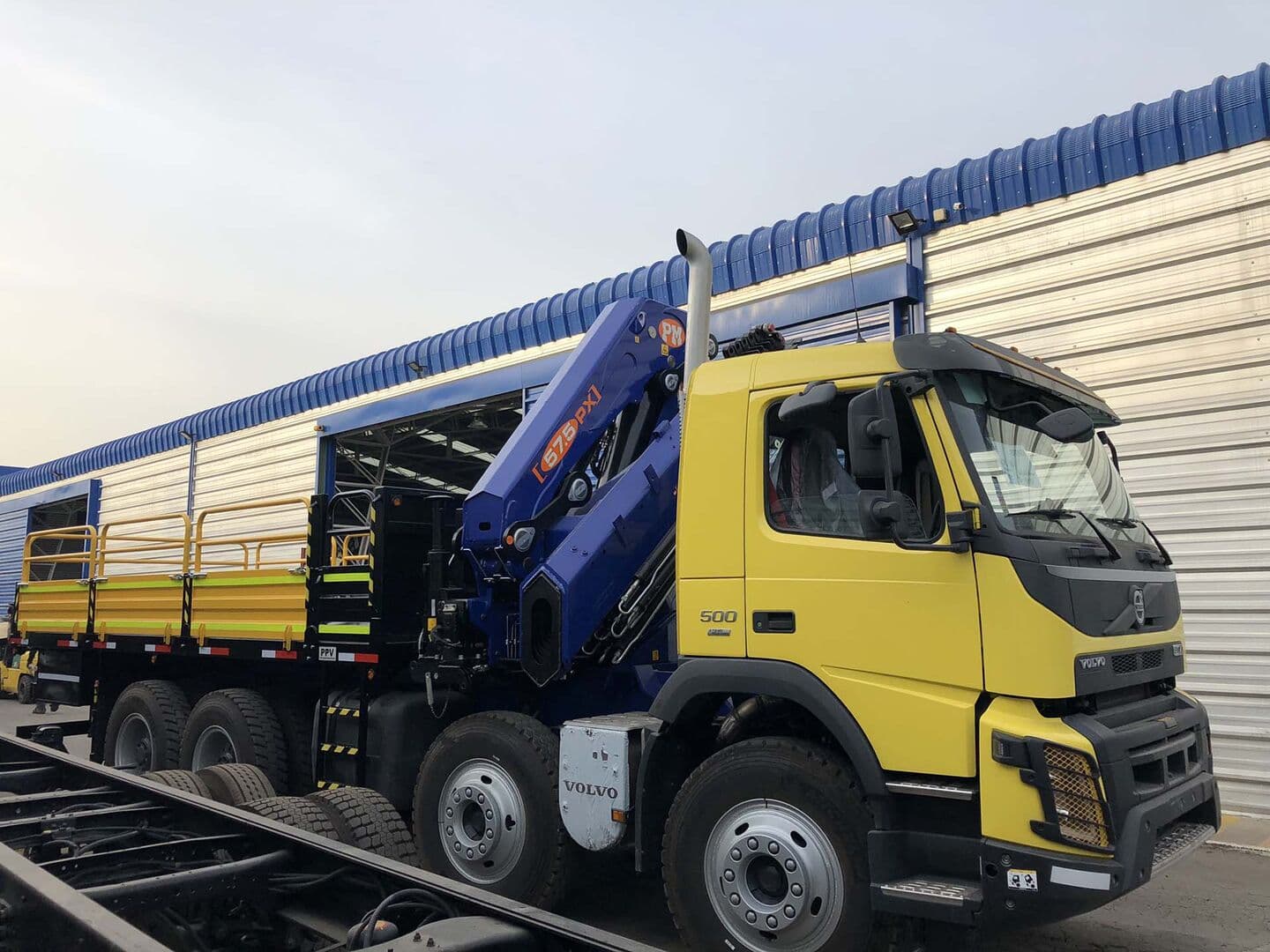

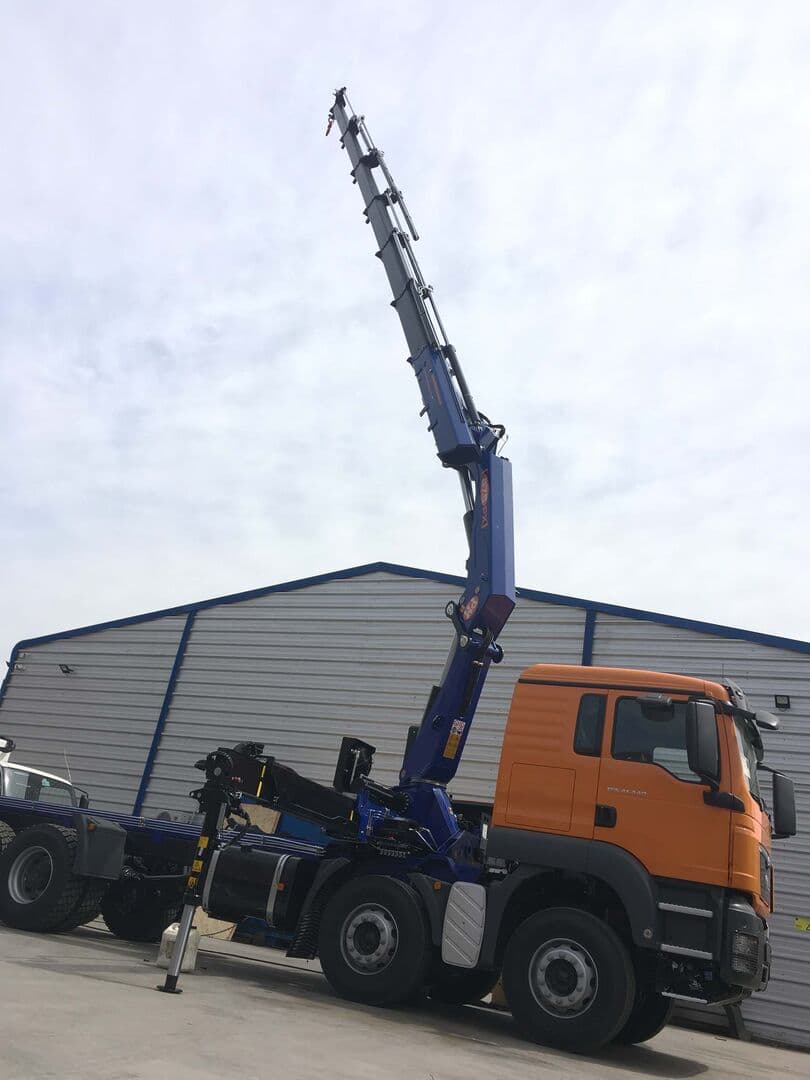

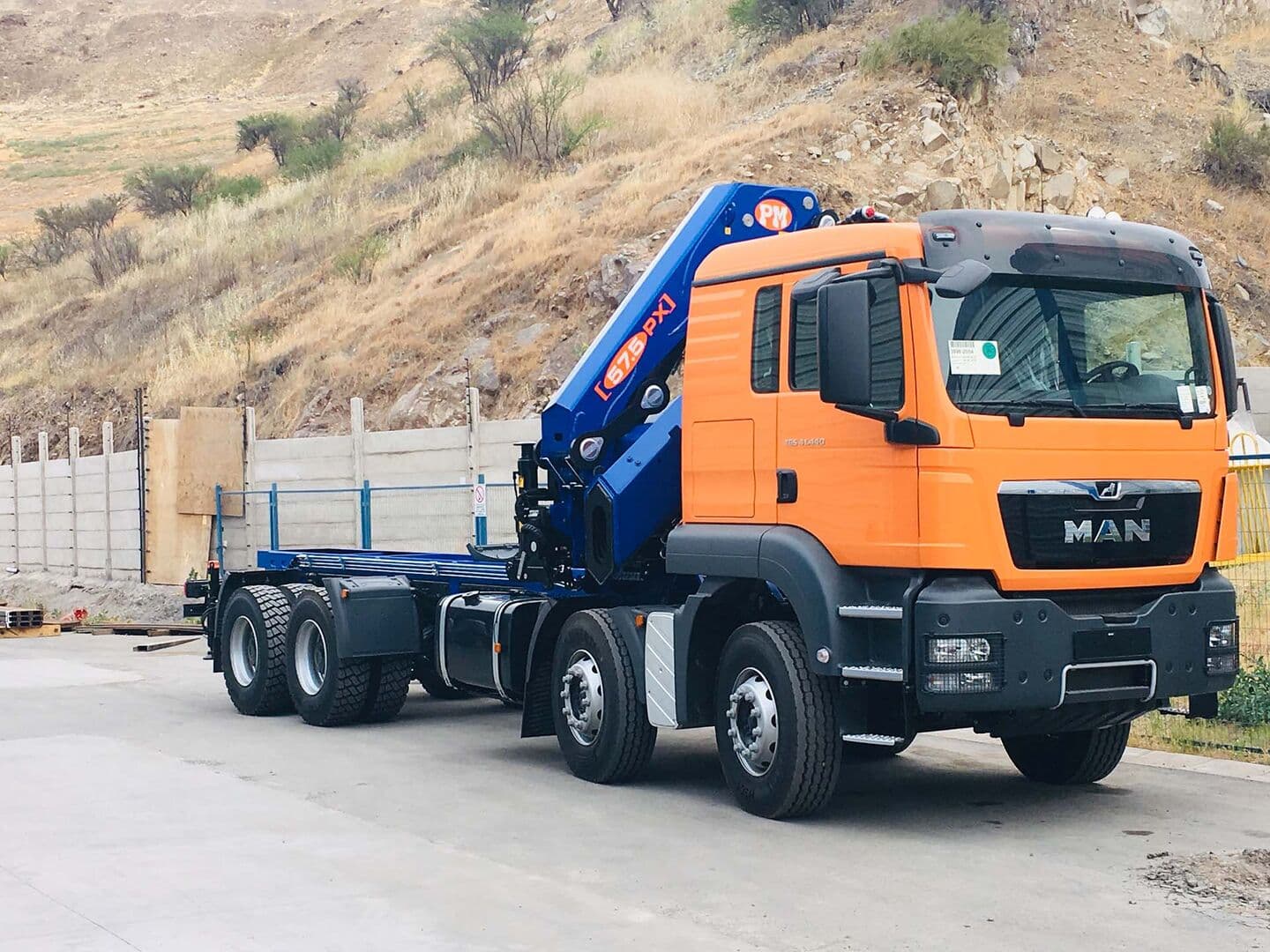

Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions
The PM 57.5 PX is a versatile crane that combines strong lifting power, efficient operation, and simple handling for intensive work applications. Efficient strength for every job.
Contact for Pricing
