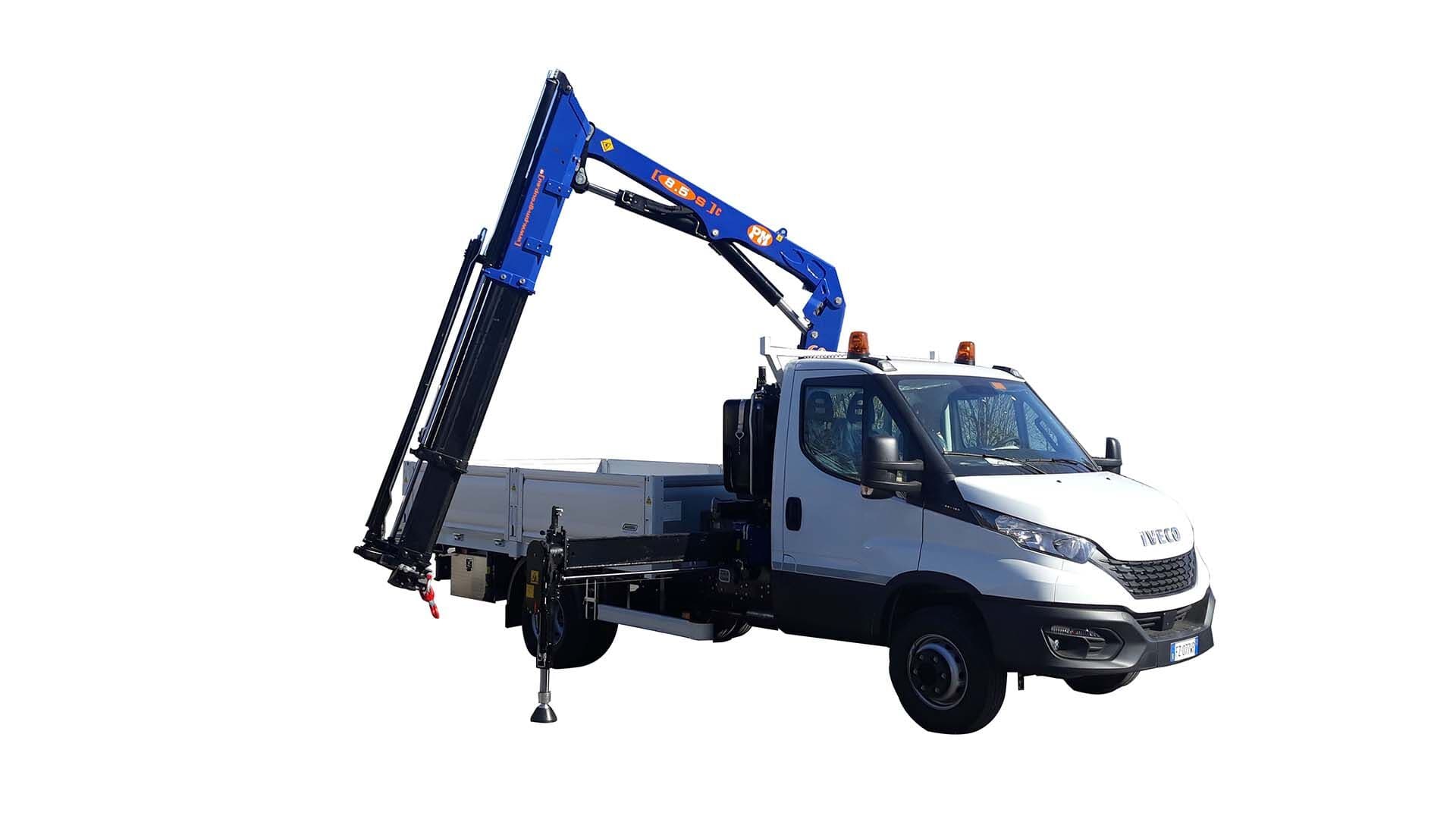

Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions
The PM 8.5 S C Series delivers exceptional performance, safe operation, and optimized handling of bulky loads—perfect for medium-capacity trucks. Compact power, optimized handling.
Contact for Pricing
PM 8521 S C | PM 8522 S C | PM 8523 S C | PM 8524 S C | PM 8525 S C | |
|---|---|---|---|---|---|
| Spec Sheet | |||||
| Max. Pressure | - | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - | - |
| Max. Lifting Moment | 52870 ft Ibs | 50740 ft Ibs | 50120 ft Ibs | 47450 ft Ibs | 46780 ft Ibs |
| Hydraulic Horizontal Outreach | 14′ 1″ | 20′ 8″ | 27′ 9″ | 34′ 9″ | 41′ 10″ |
| Hydraulic Vertical Outreach | 24′ 7″ | 30′ 10″ | 37′ 7″ | 44′ 5″ | 51′ 2″ |
| Recommended oil flow | - | - | - | - | - |
| Slewing torque | - | - | - | - | - |
| Stabilizer Spread available | - | - | - | - | - |
| Slewing angle | 400° | 400° | 400° | 400° | 400° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual | Manual |
| Width | 2′ 5″ | 2′ 5″ | 2′ 5″ | 2′ 7″ | 2′ 7″ |
| Height | 6′ 7″ | 6′ 7″ | 6′ 7″ | 6′ 8″ | 6′ 10″ |
| Length | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ |
