Aerial lifts
Xtra Capacity
Responding to customer demand worldwide for higher capacity aerial work platforms, Genie®Xtra Capacity™ (XC) booms are designed to work in more applications that require higher capacities. All Genie XC™ booms offer the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg).

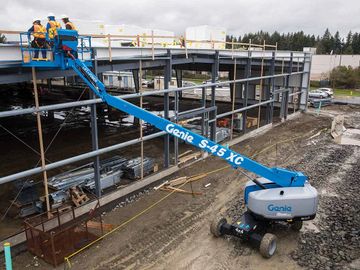

S-40 XC and S-45 XC
MAX WORKING HEIGHT: S-40 XC: 46 ft / S-45 XC: 51 ft
MAX HORIZONTAL REACH: S-40 XC: 31 ft 8 in / S-45 XC: 36 ft 2 in
BELOW GROUND REACH: S-40 XC: 1 ft / S-45 XC: 4 ft 2 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1,000 lb Restricted
MACHINE WIDTH & LENGTH: 8 ft 2 in, 31 ft 1 in

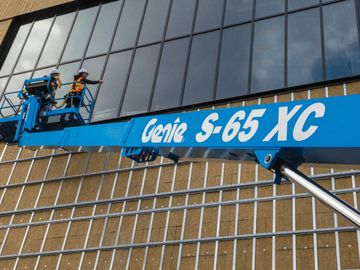

S-60 XC and S-65 XC
MAX WORKING HEIGHT: S-60 XC: 66 ft / S-65 XC: 71 ft
MAX HORIZONTAL REACH: S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in
BELOW GROUND REACH: 5 ft 7 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1,000 lb Restricted
MACHINE WIDTH & LENGTH: 8 ft 2 in, 31 ft 11 in
S-80 XC and S-85 XC
MAX WORKING HEIGHT: S-80 XC: 86 ft / S-85 XC: 91 ft
MAX HORIZONTAL REACH: S-80 XC: 68 ft 6 in / S-85 XC: 74 ft 6 in
BELOW GROUND REACH: S-80 XC: 5 ft 6 in / S-85 XC: 8 ft 8 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1000 lb Restricted
MACHINE WIDTH & LENGTH: S-80 XC: 8ft 2 in, 37 ft 7 in / S-85 XC: 8 ft 2 in, 40 ft 7 in
SX-105 XC
MAX WORKING HEIGHT: 111 ft
MAX HORIZONTAL REACH: 80 ft
BELOW GROUND REACH: 8 ft 10 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1000 lb Restricted
MACHINE WIDTH & LENGTH: 12 ft 11 in / 46 ft 9 in
SX-125 XC
MAX WORKING HEIGHT: 131 ft
MAX HORIZONTAL REACH: 80 ft
BELOW GROUND REACH: 8 ft 10 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1000 lb Restricted
MACHINE WIDTH & LENGTH: 12 ft 11 in / 46 ft 9

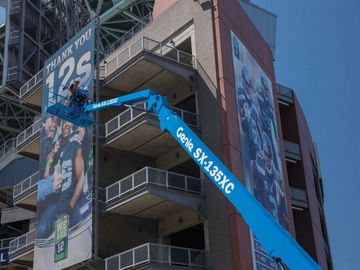

SX-135 XC
MAX WORKING HEIGHT: 141 ft
MAX HORIZONTAL REACH: 90 ft
BELOW GROUND REACH: 19 ft 8 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1000 lb Restricted
MACHINE WIDTH & LENGTH: 12 ft 11 in / 64 ft 10 in
Z-45 XC
MAX WORKING HEIGHT: 51 ft 6 in
MAX HORIZONTAL REACH: 24 ft 9 in
BELOW GROUND REACH: 24 ft 5 in
PLATFORM CAPACITY: 660 lb Unrestricted, 1,000 lb Restricted
